VT-100A

Sensibly equivalent to:
807 Special
See also:
Beam Tetrodes and the 807 - CV1060 short entry

Extras ▼

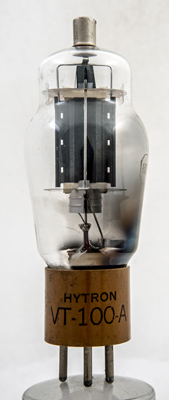

The VT-100A is an American Government procurement code for a modified or selected 807. This exhibit was made by Hytron and has the Type designation 807 etched into the envelope.
What is interesting is that the base cap carries an old UK stores code of 110E/8 and this maps to a selected 807. Also on the cap is the Air Ministry AM and crown. The presumption is that this valve was for servicing a piece of American equipment that was in service with the RAF.

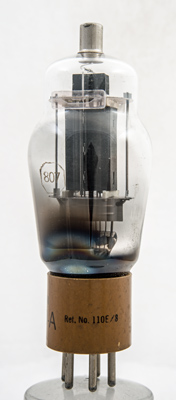

The stores code on the base and the 807 on the glass.

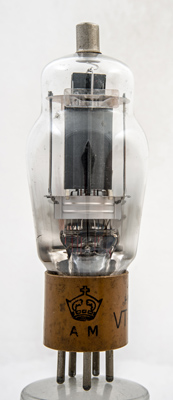

The British Air Ministry logo.

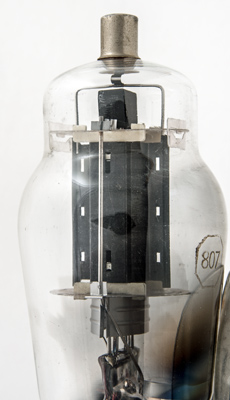

Visually there is no obvious difference to a standard 807 which suggests a selection for performance.

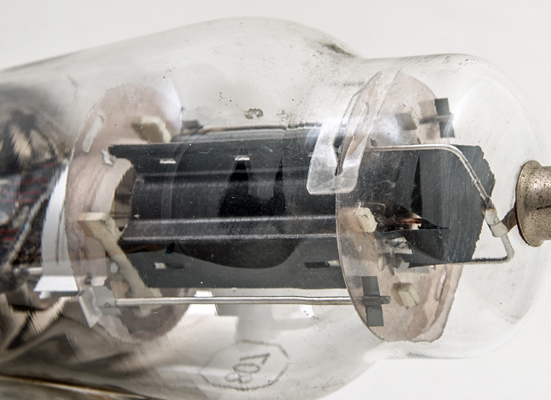

The anode shape is clearly seen with the two halves stitched together.
The classic envelope has a maximum diameter of 51 mm and a length, excluding the UX5 base pins, to the tip of the top cap of 126 mm.
References: Data-sheet & 1040.



Pin Connections
UX5
1
2
3
4
5
tc
h
g2
g1
k
h
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
6.3
0.9
300
250
-14
83
8
20k
6.5
6.7W



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
mAg
Pdriv
Pdiss
Pout
freq
f.max
6.3
0.9
600
250
-45
100
7
3.5
0.2W
25W
40W
60
125
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 17, 2021.
