220SG

Sensibly equivalent to:
SG220
See also:
Cossor 220SG advert - Cossor 220SG advert - Cossor 215SG & 220SG advert - Cossor 2 Volt Range Advert - Cossor Metallised Valves Advert - Cossor MSG/HA Advert - Cossor SG Valves Advert - 215SG, 220SG, 220VSG, 220VS. MSG/HA, 41MSG, MSG/LA, MVSG, MS/PenA, MS/Pen, MVS/Pen, DVSG, DS/Pen & DVS/Pen Advert

Extras ▼



The 220SG was the new name for the SG220 of 1928.
The Cossor answer to the original screened grid valve from M-OV, the S625, was the SG210, another double ended valve. The single ended replacement for the SG210 was the SG220 that also had issues with its coated filament.

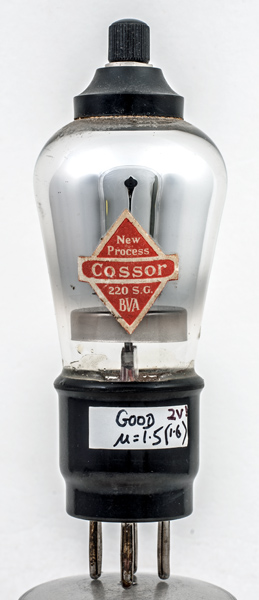

This valve dates to after 1929 when the Cossor New Process was introduced but is essentially the same electrically as the SG220.

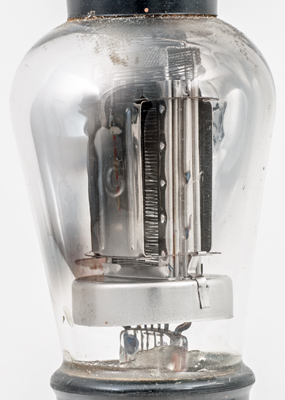

The bright anode uses the C and the ridges to add rigidity to the thin Nickel sheet. Inside the anode can be seen the close wound screening grid. This also extends above the top mica. A close look reveals the coated filament strands.

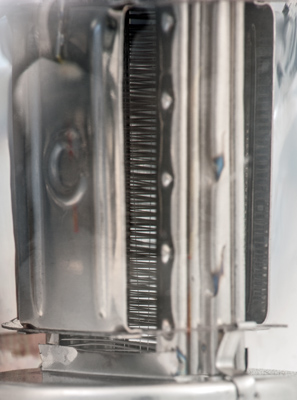

A better view of the filament.
The balloon envelope is 45 mm in diameter, and excluding the B4 base pins is 1114 mm tall.
References: Data-sheet & 1043. Type 220SG was first introduced in 1928. See also 1928 adverts.



Pin Connections
B4
1
2
3
4
tc
g2
g1
f
f
a



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
μ
2.0
0.2
120
60-80
-1.5
3.1
-
0.2M
1.6
320
Thanks to Andy Cowley for supplying the above PDF datasheet.
