Z77

Sensibly equivalent to:
6AM6 6F12 8D3 CV138 CV4014 EF91 HP6
See also:
EF91 - not the valve that won the war - Television RF Valve Development - Valves and their Habits - Valves for Bands III, IV & V - Physical Society Exhibition 1947 - Olympia Show 1947 - GEC CV4005 U78, CV4014 Z77 & CV4062 N78 Advert - The EF91 and the Blue Band

Extras ▼

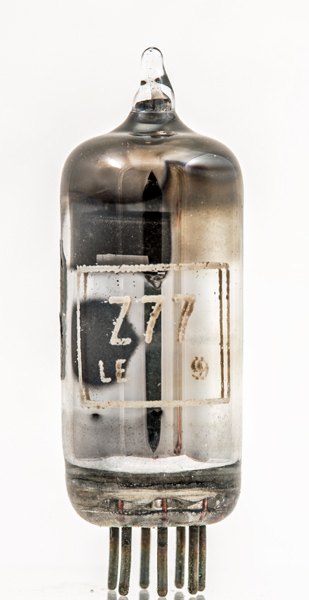

The Z77 from M-OV was another designation for the ubiquitous EF91 of the late 1940s. In this exhibit the lettering proclaims the Osram brand.
The design offers high gain, high impedance, high slope, in a screened pentode.

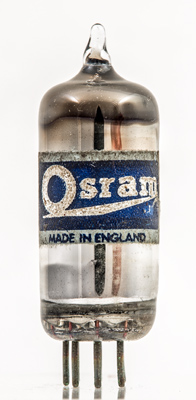

The Osram label.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 46 mm tall.
References: Data-sheet & 1040 Type Z77 was first introduced in 1947. See also 1947 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g3
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
250
-2
10
2.5
1M
7.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 12, 2023.
