ECL80

Sensibly equivalent^¶ to:

63TP 6AB8 LN152

See also:

Valves and their Habits - A Single Valve Gram Unit

Extras ▼

Ediswan Valve Donation by Peter Bates (GM4BYF) Other ECL80 exhibits

The ECL80 is a triode, output pentode for audio use, itis a low power device with the triode feeding the pentode for a compact single end audio stage.

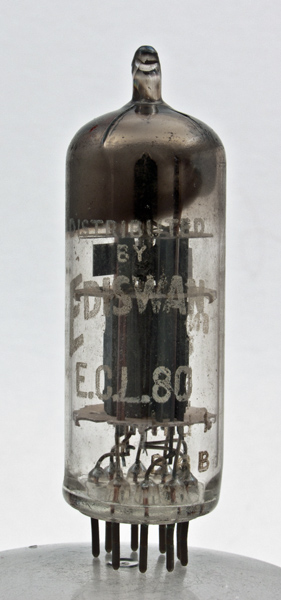

The interesting thing about this valve is that it is UK made but it is marked as distributed by Ediswan rather than carry a Mazda brand.

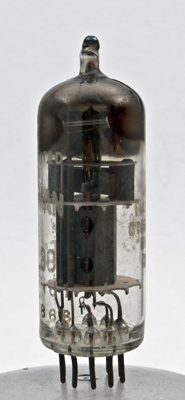

The single cathode with the triode mounted at right angles to the pentode.

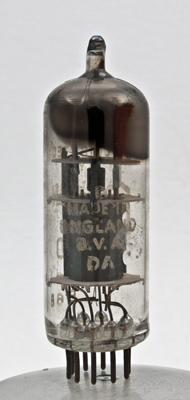

Made in the UK.

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 59 mm tall.

References: Data-sheet & ¹⁰⁴⁰. Type ECL80 was first introduced in 1950. See also 1950 adverts.

Pin Connections

B9A	1	2	3	4	5	6	7	8	9
	a(t)	g1(t)	k,s	h	h	a	g3	g2	g1

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	6.3	0.3	200	200	-8	17.5	3.3	25k	5

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated March 12, 2022.
