30L17

Sensibly equivalent to:
PCC806
See also:
Valves and their Habits - 30L17 Advert - TV Frame-Grid Valves Advert

Extras ▼



The 30L17 is a double triode with unusual connections. It was designed for cascode (series) operation in the front ends of television receivers.

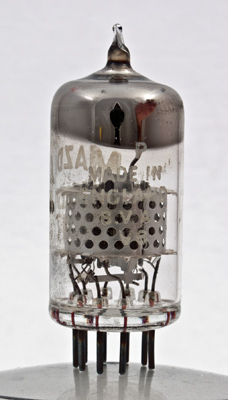

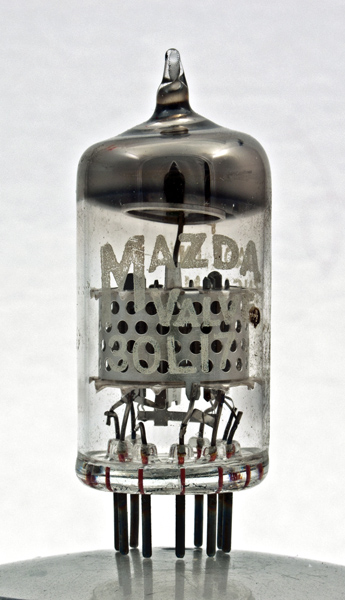

The screen obscures the twin triodes but the anodes appear to be U shaped and the fine wires of the frame grid are gold plated.
The 30L17 is the frame grid version of the 30L15.
The thin glass tube envelope is 21 mm in diameter and, excluding the B9A base pins, is 47 mm tall.
Reference: 1040. Type 30L17 was first introduced in 1961. See also 1961 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k(2)
g1(2),s(1)
a(2)
h
h,s(2)
g1(1)
k(1)in
k(1)out
a(1)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
7.2
0.3
75
-0.75
15
2,400
16.5
Updated March 28, 2017.
