PCC806

Sensibly equivalent to:
30L17
See also:
Mazda TV Valves Advert

Extras ▼

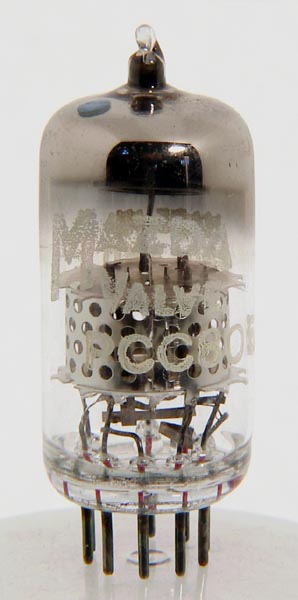

The PCC806 is a purpose designed RF amplifier for UHF television. The box that this exhibit came in was marked with a price of 15/- plus purchase tax.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 46 mm tall.
Reference: 1040. Type PCC806 was first introduced in 1961. See also 1961 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k(2)
g1,s(2)
a(2)
h
h,s(2)
g1(1)
k(1)in
k(1)out
a(1)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
7.2
0.3
75
-0.75
15
2.400
16.5
