SS210RC

Sensibly equivalent to:
PM1A

Extras ▼



The SS210RC from Six Sixty is a Mullard PM1A. This triode was designed for Resistance Capacitance Coupled (RCC) applications.

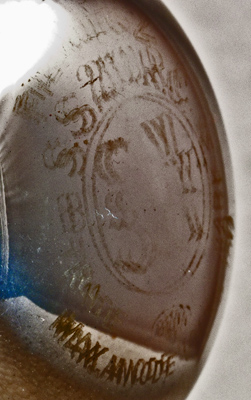

The etched lettering is quite clear. Unlike our other SS210RC this exhibit lacks the paper band around the base.

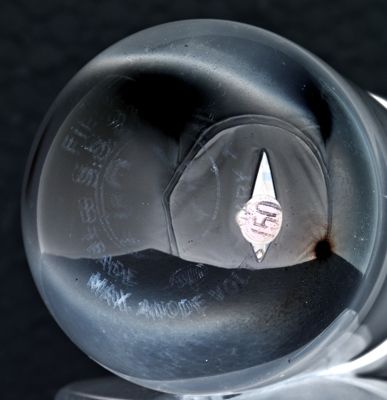

Another attempt as a good image of the lettering.
The horizontal box anode with grid wires extending beyond the anode.
The balloon envelope is 41 mm in diameter, and excluding the B4 base pins is 76 mm tall.
References: Data-sheet & 1043. Type SS210RC was first introduced in 1928. See also 1928 adverts.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
2.0
0.1
150
-
-
72,000
0.5
36
Thanks to Andy Cowley for supplying the above PDF datasheet.
