H210

Sensibly equivalent to:
B228
See also:
Osram HL2, HL210, H210, MH4 & DH Advert

Extras ▼

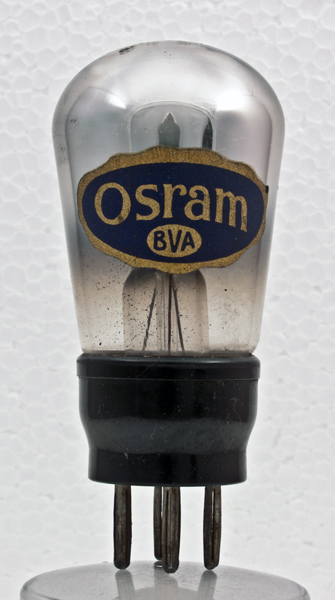

The H210 from Osram is a battery triode. The design use was as a detector or for use in resistance/capacitor coupled (RCC) circuits.

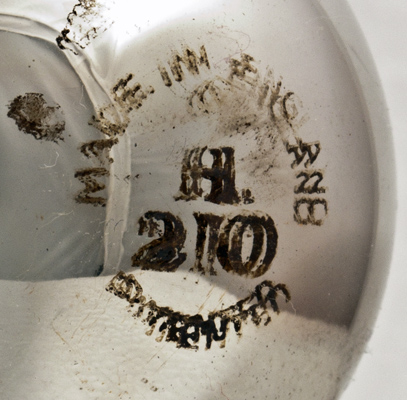

The silvered dome carries the etched lettering..
The balloon envelope is 41 mm in diameter, and excluding the B4 base pins is 78 mm tall.
Reference: 1043. Type H210 was first introduced in 1929. See also 1929 adverts.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
2.0
0.1
150
-1.5
1.0
50,000
0.7
35
Updated August 07, 2019.
