PCL83

Sensibly equivalent to:
CV5144 LN309

Extras ▼



The PCL83 is a television audio triode output pentode with a main role as frame oscillator and output stage.

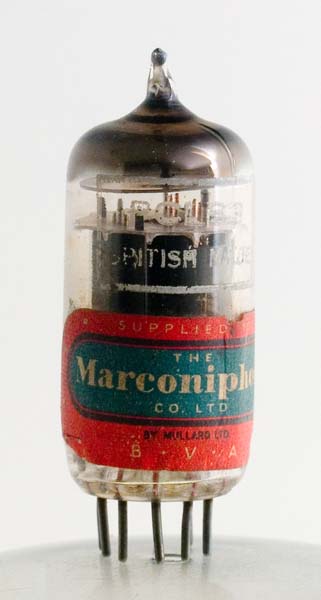

Marconiphone is a brand name used by M-OV.
This standard design was made by several manufacturers. We also have other examples: PCL83 from Brimar & PCL83 from Mullard.
In the envelope the two electrode systems are side by side. The triode being much smaller anode. The wire grids can be seen through the hole in the pentode anode.
The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins, is 47 mm tall.
References: Data-sheet & 1040. Type PCL83 was first introduced in 1954. See also 1954 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1(t)
k(t)
h
h
a
k,g3
g2
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pdiss
Pout
12.6
0.3
170
170
-9.5
30
5
53k
5.5
5.4W
2.2W



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
250
-8.5
10.5
7700
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 29, 2013.
