HA2

Sensibly equivalent to:
955 CV1059
See also:
Acorn Valves - A data-sheet for the 956 - CV1059 short entry

Extras ▼

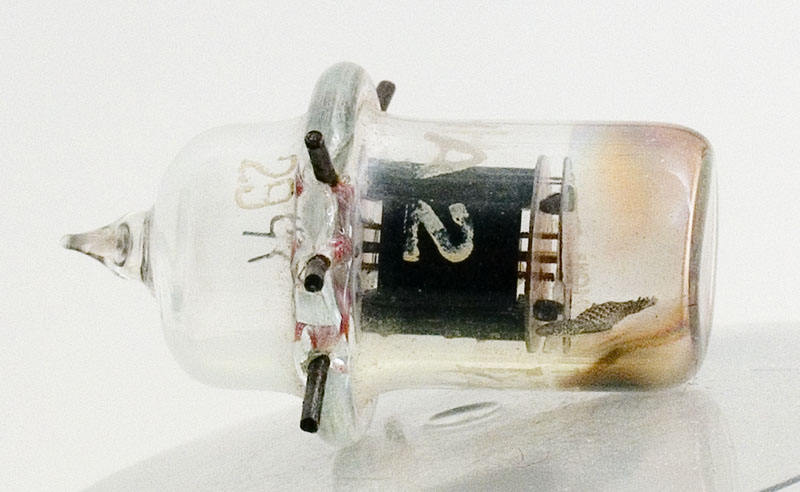

The HA2 is a Marconi valve by M-OV that duplicates the American 955. The acorn valves were designed to have low capacitances and therefore work to higher frequencies than the normal valves.
Radio amateurs used them for work at 144 MHz after WWII.
The 955 was introduced by RCA in 1934 and the UK made devices did not achieve the success of the American product.
The tip to tip length is 32 mm and the envelope is 13 mm in diameter.
References: Data-sheet. Type HA2 was first introduced in 1936. See also 1936 adverts.



Pin Connections
Misc
1
2
3
4
5
h
k
h
g1
a



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
6.3
0.15
180
-9.0
8
12000
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 08, 2022.
