DG210


See also:
The Bi-grid Valve

Extras ▼



The DG210 from Tungsram is a bi-grid mixer for use up to 1 MHz. It was described as a combined oscillator and mixer and thus made a saving of one valve. The mixer is an essential component of the superhet receiver. The original early 1920s bi-grid was a space charge valve designed to operate at very low HT voltages.

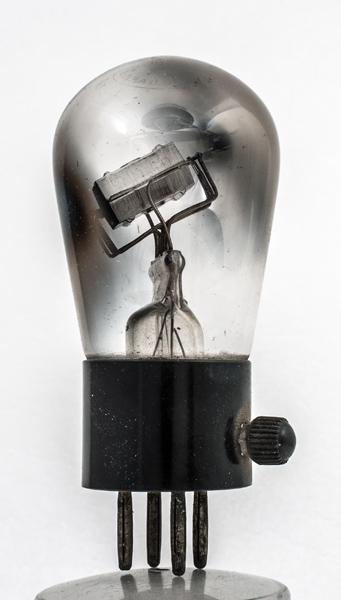

The dome carries the Tungsram name, identifies it as a Barium Tube (The Azide Process), gives the Type designation, filament voltage and then a figure of 20 Volts. The data sheet gives 20 Volts as the second grid voltage.
The balloon envelope is 47 mm in diameter, and excluding the B4 base pins is 88 mm tall.
Reference: 4064. Type DG210 was first introduced in 1931. See also 1931 adverts.



Pin Connections
B4
1
2
3
4
sc
a
g2
f
f
g1



Absolute Maximum Operating Conditions
The Bi-Grid Valve
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
2.0
0.12
100
20
-
-
-
5,000
Updated November 03, 2022.
