EL31

Sensibly equivalent to:
CV2888

Extras ▼

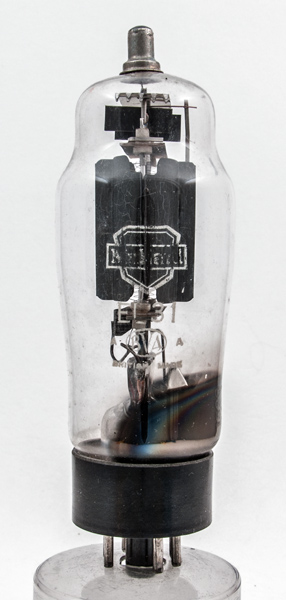

The EL31 like the EL37 is a 25 Watt anode dissipation audio output pentode. The EL31 is designed for high anode voltages and lower current than the EL37 and can produce greater output power.

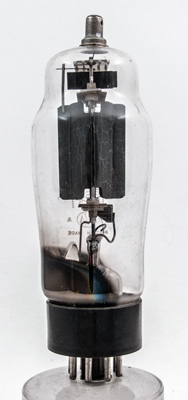

The EL31 is a true pentode. The anode is separated from the mica sheets by ceramic insulators.

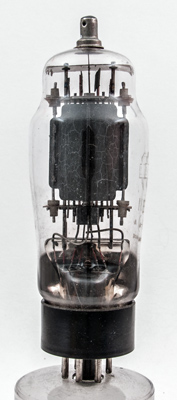

The grids can be seen below the top mica. The control grid is fitted with a sizeable heat radiator.

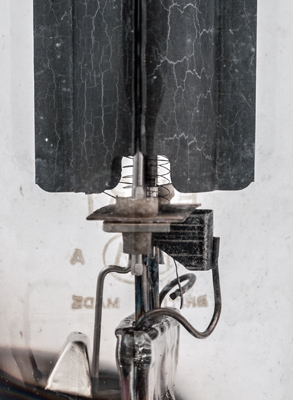

The pinch and lower components.
The classic envelope is 43 mm in diameter and, excluding the IO base pins, is 119 mm tall.
References: Datasheet. Type EL31 was first introduced in 1948.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
nc
h
k,g3



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
1.4
600
400
-22.0
42
5.0
43,000
7.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 29, 2015.
shape:classic construction:pinch type:pentode age:1940.1950 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a pin:4.g2 pin:5.g1 pin:6.nc pin:7.h pin:8.k.g3
