VR27

Sensibly equivalent to:
210LF CV1027 L210

Extras ▼



The VR27 (later named the CV1027) is an battery audio voltage amplifying triode. The VR indicates that this was specified and delivered to the RAF pre 1941 when the CV register came into force.

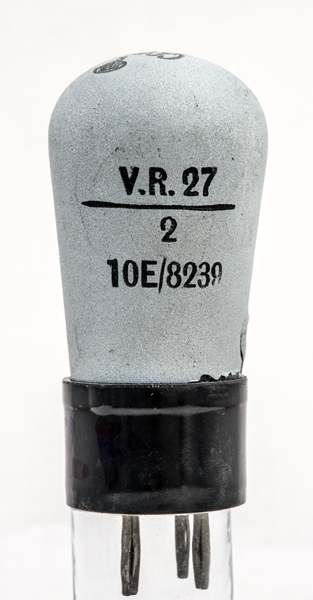

The old stores code of 10E/8239 is printed on the zinc screening paint.
The Air Ministry AM and Crown.

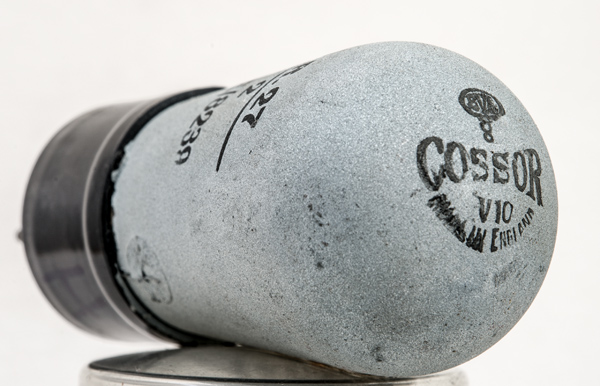

The dome carries the Cossor name, made in England, BVA and their code V10.
The balloon envelope is 41 mm in diameter and, excluding the B4 base pins, is 85 mm tall.
References: Data-sheet & Data.



Pin Connections
B4
1
2
3
4
a
g1
f-
f+



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
2.0
0.1
150
0
-
-
1.1
15.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 19, 2023.
