D63

Sensibly equivalent to:
6H6GT 6H6G ARDD3 CV554 CV1301 CV1929 EB34

Extras ▼



The D63 is a double signal diode with separate cathodes. The old service code was ARDD3 and the later CV code was CV1301.

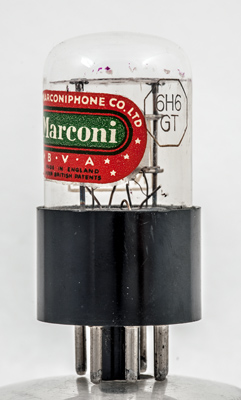

The Marconi paper label. It states that the valve was made in England under British Patents.

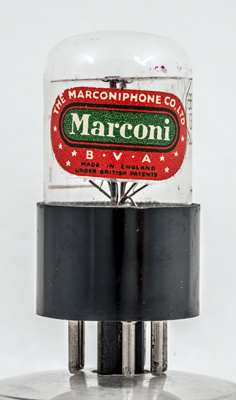

Note that on the side in an octagonal lozenge is the etched Type designation of 6H6GT. Is it possible that this is an RCA valve brought to the UK and rebranded? Our other Marconi D63 is of the classic shape and covered in metal paint.

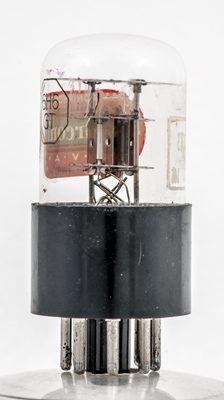

The two small diode sections sitting above the pinch.

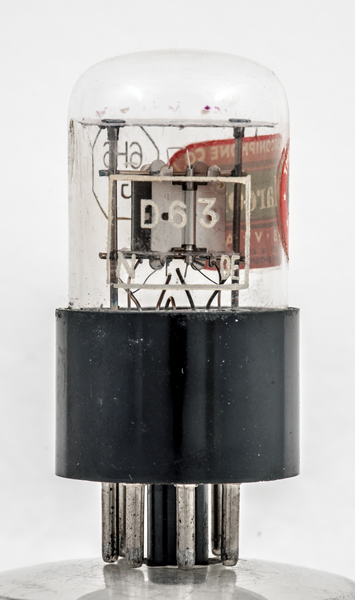

The classic envelope is 35 mm in diameter, and excluding the IO base pins is 76 mm tall.
References: Datasheet, 1040 & 1043. Type D63 was first introduced in 1937.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
k(2)
a(1)
-
h
k



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.3
100
2.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 07, 2018.
construction:pinch type:double.diode age:1930.1940 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a(2) pin:4.k(2) pin:5.a(1) pin:6.- pin:7.h pin:8.k
