6D6

Sensibly equivalent to:
58 C1408 CV1900 VT-69

Extras ▼



The 6D6 is a variable μ pentode for AGC controlled amplifiers at RF and IF in superhet radio receivers.
Electrically the 6D6 (UX6 base) is identical to the Type 58 (UX6 base) and the 6U7G (IO base).

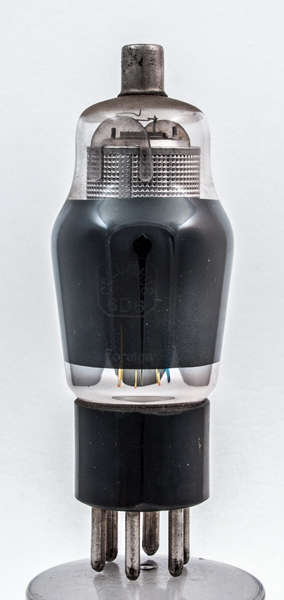

The central lozenge box contains the Columbus brand and the 6D6 designation. Below is the word Foreign.

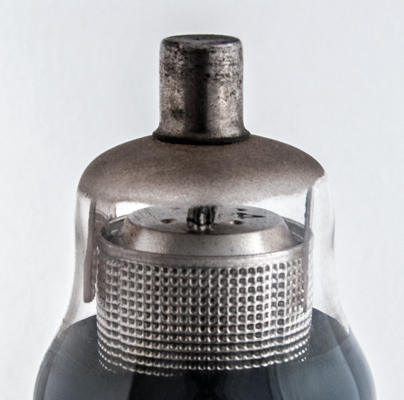

The side and top screens leave a very small gap for the control grid connection to the top cap.
The classic envelope is 39 mm in diameter, and excluding the UX6 base pins is 96 mm tall.
References: Data-sheet, 1040 & 1043. Type 6D6 was first introduced in 1936. See also 1936 adverts.



Pin Connections
UX6
1
2
3
4
5
6
tc
h
a
g2
g3
k
h
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-3
8.2
2.0
0.8M
1.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 05, 2015.
