6U7G

Sensibly equivalent to:
6U7 CV706

Extras ▼



The 6U7G is a variable μ pentode. Amplifier pentodes such as this would be AGC controlled gain stages in superhet receivers.
The 6D6 is essentially the same valve on a UX6 base.

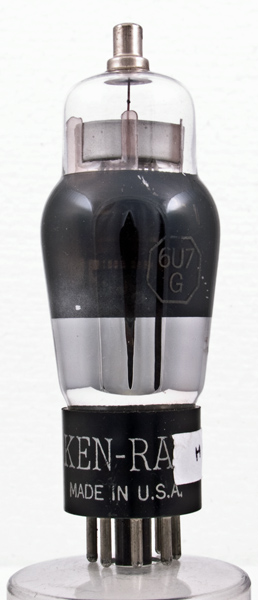

Very little of the electrode structure is visible except for the insulated and twisted heater.
The classic envelope is 38 mm in diameter, and excluding the IO base pins is 104 mm tall.
References: Data-sheet, 1043 & 3002. Type 6U7G was first introduced in 1936. See also 1936 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
nc
h
a
g2
g3
nc
h
k
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-3
8.2
2.0
0.8M
1.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 03, 2022.
