150B2

Sensibly equivalent to:
0A2 CV2225 G150/4K M8163 M8208 QS1200
See also:
Mullard 150B2 Box - SQ Voltage reference tubes - Mullard Voltage Reference and Stabiliser Tubes Advert - Keeping Voltages Steady

Extras ▼

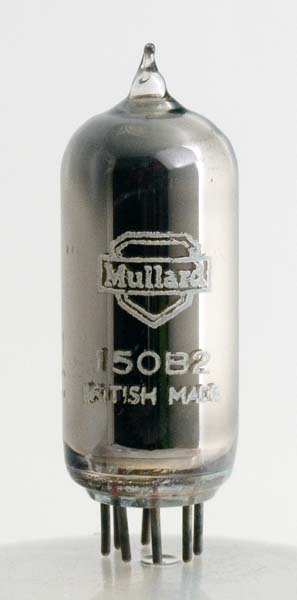

The 150B2 voltage stabiliser has a striking voltage of 165 Volts and over the specified current range will regulate to 5 Volts of the 150 Volts.
The 150B2 has two special quality variants; the M8163 and the M8208.
The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 46 mm tall.
References: Data-sheet & Data.



Pin Connections
B7G
1
2
3
4
5
6
7
a
k
ic
ic
ic
ic
ic



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
150
5-30
Thanks to Frank Philipse for supplying the above PDF datasheet.
