GTE130T

Sensibly equivalent to:
CV2434
See also:
Cold Cathode Trigger Tubes

Extras ▼

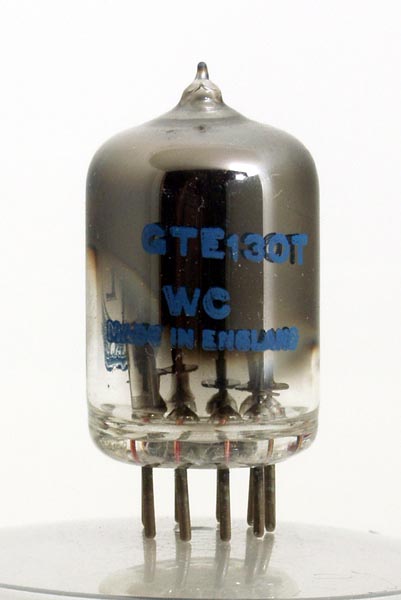

The GTE130T is a cold cathode trigger tube. Inside the envelope is a cylinder with a central rod and outside the cylinder is an insulated electrode with just the tip uninsulated.

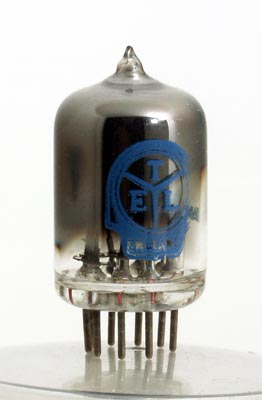

The manufacturers logo is clearly visible.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 33 mm tall.
Reference: Data-sheet. Type GTE130T was first introduced in 1962. See also 1962 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a
ic
ic
k
k
a(aux)
k
t
t



Absolute Maximum Operating Conditions
General Notes
Va
290
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 18, 2013.
