EBF2



Extras ▼



The EBF2 is a double diode pentode designed for use in low cost broadcast receivers.
The valve is a high impedance variable μ pentode, with two auxiliary diodes all sharing a common cathode. In a superhet receiver one diode would be used for signal detection and the other to produce an AGC voltage to reduce the receiver sensitivity on strong signals and thus prevent overloading and distortion. The vari-μ pentode voltage amplifier in a low cost receiver would be the IF amplifier. The attached data-sheet gives such a use for the valve.

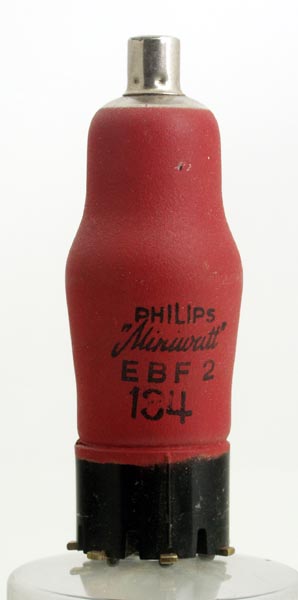

The classic envelope is 29 mm in diameter, and excluding the Ct8 base pins, is 85 mm tall.
References: Data-sheet & 1043. Type EBF2 was first introduced in 1938. See also 1938 adverts.



Pin Connections
Ct8
1
2
3
4
5
6
7
8
tc
m
h
h
k
a(d1)
a(d2)
g2
a
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.2
250
250
-2
5
2
2M
1.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
