The Ct8 side contact base was a continental design from Philips, that was introduced to the UK in 1934. Set makers in the UK were less keen on the base than other types of base design. See also Mullard Universal Valves (AC/DC)

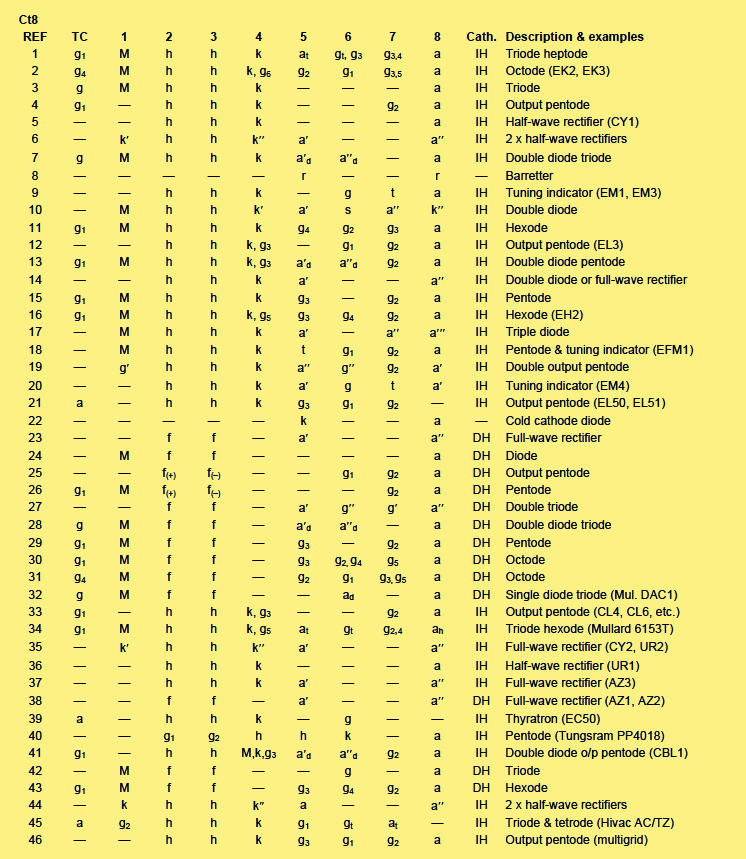

The pin-outs below refer to the data researched by Keith R Thrower OBE.
|
