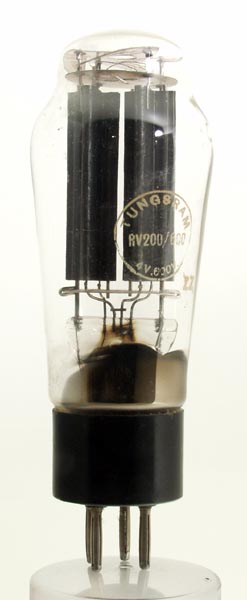

The RV200/600 full wave rectifier is a higher power device than most full wave rectifiers at 500 Volts and 250 mA DC output. The valve is directly heated. The maximum reservoir capacitor is 16 µF and the minimum effective series resistance has to be 200 Ohms.
The classic envelope is 48 mm in diameter, and excluding the B4 base pins, is 123 mm tall.
Pin Connections
B4
1
2
3
4
a(1)
a(2)
f
f
Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
4.0
3.0
500
250
