N118Sensibly equivalent¶ to:
|
|
|

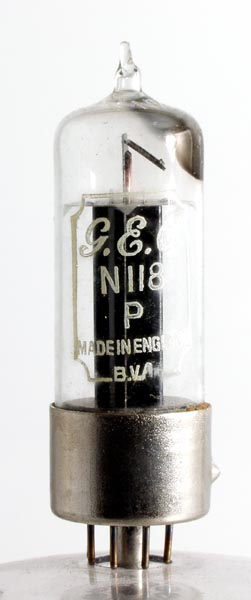

The N118 is an audio output valve designed for universal mains radio receivers.The cathode resistor should be 180 Ohms and the anode load should be 5,40 Ohms.The thin glass tube envelope is 20 mm in diameter and, excluding the B8A base pins, is 64 mm tall.Reference: 1040. Type N118 was first introduced in 1957. See also 1957 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |  h | a | ic | ic | g2 | g1 | k | h |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | Pout | D |
| 40 | 0.1 | 180 | 150 | -12.5 | 70.0 | 5.0 | 230k | 10.0 | 2.6 | 10.0 |
|
Updated April 29, 2013.
|
|
