230XP

Sensibly equivalent to:
CV1023 VT23
See also:
Cossor 230XP Box

Extras ▼



The 230XP is described by Cossor as a Super-Power valve. It is for audio output and the data-sheet suggests that two may be used in push-pull.
The anode load is 3,500 Ω and the output for a single valve is 450 mW.

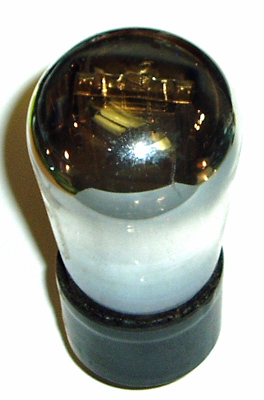

The electrodes have a rectangular mica support at the top but this is not wedged into the balloon envelope.

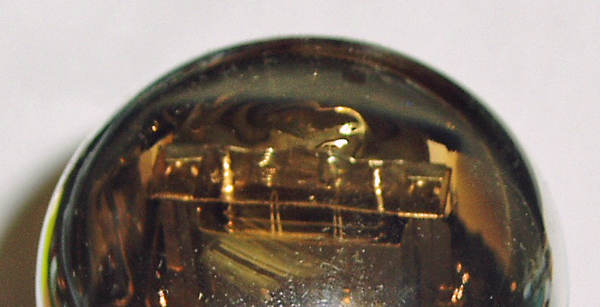

A closer view of the grid and oxide coated filament.

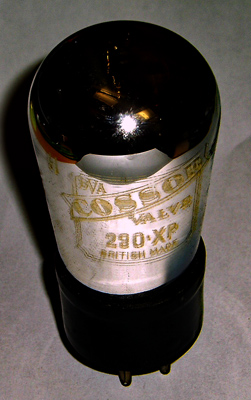

The Cossor name and Type designation. This style was in use for at least a decade.
Thanks to Mark from Vintage-parts for sending these images.
The balloon envelope is  mm in diameter, and excluding the B4 base pins is  mm tall.
References: Datasheet, & 1043. Type 230XP was first introduced in 1929.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
2.0
0.3
150
-18.0
22.0
1,500
3.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 27, 2017.
