1LE3

Sensibly equivalent to:
VT-239

Extras ▼

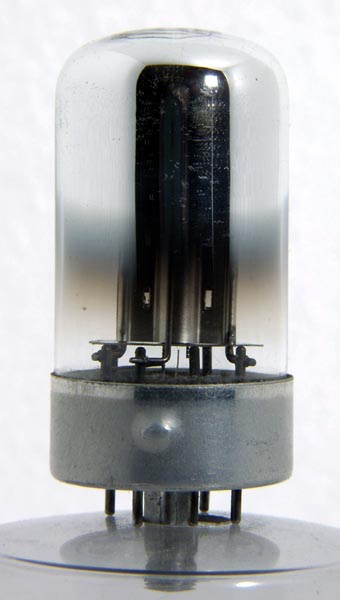

The 1LE3 is an amplifier triode for dry cell radios. Our exhibit is employed as a phase inverter driving a push-pull audio output stage, using a pair of 1LB4s, in a 1947 Zenith 8G005Y battery/mains radio from America.
The wide glass tube envelope is 28 mm in diameter and, excluding the B8B base pins, is 55 mm tall.
Reference: Datasheet. Type 1LE3 was first introduced in 1940.



Pin Connections
B8B
1
2
3
4
5
6
7
8
f+
a
-
-
ic
g1
-
f-



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
1.4
0.05
90
-3
1.3
19,000
0.76
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 20, 2013.
shape:wide.glass.tube construction:all.glass type:triode age:1940.1950 base:b8b heater:1.4v pins:8 pin:1.f+ pin:2.a pin:3.- pin:4.- pin:5.ic pin:6.g1 pin:7.- pin:8.f-
