6N7GT

Sensibly equivalent to:
CV1958
See also:
Quiescent Push-Pull

Extras ▼



Type 6N7 designed to operate in push-pull Class B2 with zero grid bias. The anode to anode load is given as 8,000 Ohm. It is specifically an audio power valve capable of 10W per pair. Provided plenty of HT voltage is available it can also be used, with both halves connected in parallel, Class A1, as a power driver for another 6N7.
Type 6A6 is the same valve but on a UX7 base.

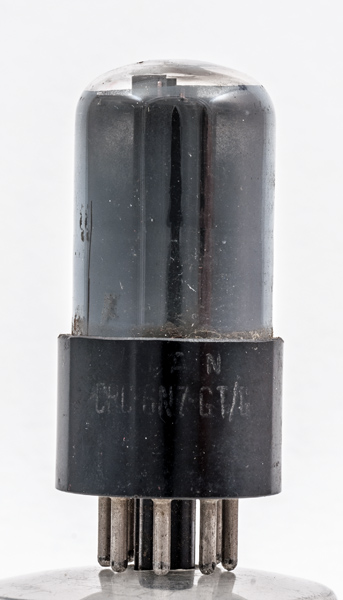

Made in USA by RCA. The internal coating hides the inner double triode structure.
The wide glass tube envelope is 29 mm in diameter, and excluding the IO base pins, is 62 mm tall.
References: Datasheet, 1040 & 1043. Type 6N7GT was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
h
a(2)
g1(2)
g1(1)
a(1)
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
6.3
0.8
300
0
35.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 13, 2017.
shape:wide.glass.tube construction:pinch type:double.triode age:1930.1940 base:io heater:6.3v pins:8 pin:1.- pin:2.h pin:3.a(2) pin:4.g1(2) pin:5.g1(1) pin:6.a(1) pin:7.h pin:8.k
