SP13C

Sensibly equivalent to:
13SPA 8D2 C50B CV3704
See also:
Mullard 'Straight' Screened Pentodes - Mullard Universal Valves - The Origin of Pentone

Extras ▼



The SP13C from Mullard is a screened amplifier HF pentode. The similar SP13 has a CT8 base. The control grid is taken to the top cap for maximum isolation between input and output circuits. This valve was used in RF and IF stages of domestic radio receivers with a common heater chain and used for Universal AC/DC sets.

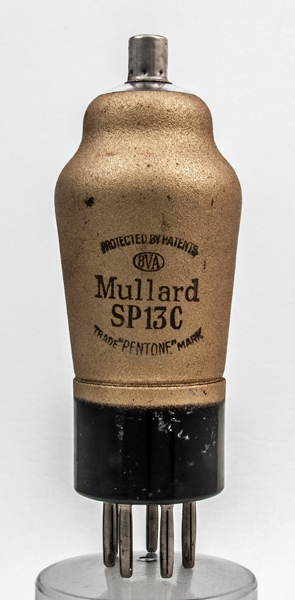

This example carries the Pentone trade name, with the later SP13C the trade name has been replaced by the Mullard logo.
The reverse contains the BAF logo.
The classic envelope is 42 mm in diameter and, excluding the B7 base pins, is 102 mm tall.
References: Data-sheet, 1040 & 1043. Type SP13C was first introduced in 1935. See also 1935 adverts.



Pin Connections
B7
1
2
3
4
5
6
7
tc
m
a
g3
h
h
k
g2
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
13.0
0.2
200
200
-2.2
2.5
0.9
2.5M
2.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
