35L6GT

Sensibly equivalent to:
CV562
See also:
Brimar 6BE6, 6BA6, 6AT6, 6AQ5 & 6X4 12BE6, 12BA6, 12AT6, 35L6GT, 35W4, 6AK6, 1S5, 1U5, 3S4, 3V4, 1R5 & 1T4 Advert - Brimar 35L6GT Advert - Brimar 35L6GT Advert

Extras ▼

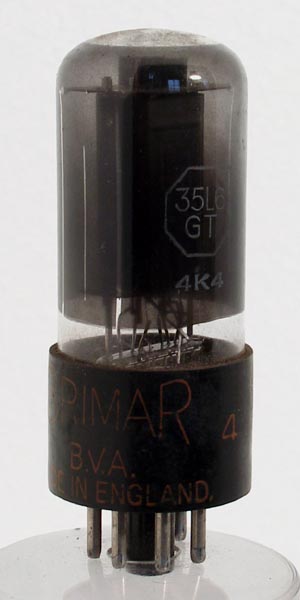

The 35L6GT glass tubular audio output valve was designed for the final stages of radio receivers. The 35 Volt heater 0.15Amp heater rating was to enable the valve to operate in series heater chains in universal sets, including television receivers. The 50L6GT is identical in operation but has a different heater rating. It too was designed for heater chain use.
The wide glass tube envelope is 28 mm in diameter,and excluding the IO base pins, is 69 mm tall.
References: Data-sheet, 1040 & 1043. Type 35L6GT was first introduced in 1938. See also 1938 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
nc
h
k



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
35
0.15
200
110
-8
41
2
40,000
5.9
3.3W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 08, 2022.
Return to Main Index
