VR100

Sensibly equivalent to:
CV1100 KTW61 KTW62 NR64 POVT193

Extras ▼

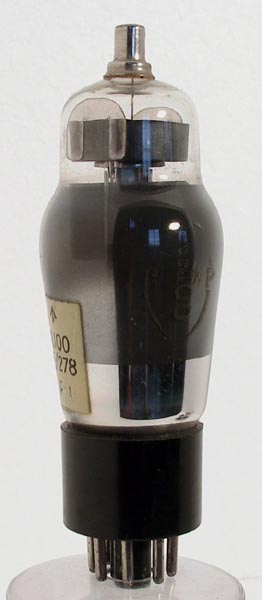

The VR100 is an M-OV Type KTW62 supplied during WWII for RAF use and later re-named the CV1100. It is a vari-mu IF kinkless tetrode of the 6K7 class but with slightly more gain. Thousands were supplied during the WWII with the KTW62 used in the CR100.
The classic envelope is 36 mm in diameter and, excluding the IO base pins, is 102 mm tall.
References: Private communication, data-sheet, 1005 & 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g2
g3
nc
h
k
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-3
8.0
2.8
0.46M
2.9
Thanks to Frank Philipse for supplying the above PDF datasheet.
