AW3

Sensibly equivalent^¶ to:

CV1110 S130 VS110

See also:

CV1110 short entry

Extras ▼

Unknown HMS Collingwood Other AW3 exhibits

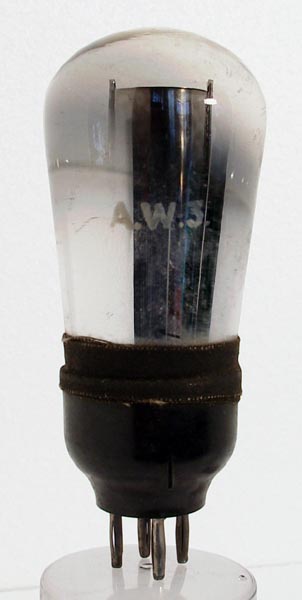

The AW3 gas filled voltage stabiliser is on a B4 base. AW3 is the UK Army designation, VS111 is the RAF designation and both types were renamed CV1110.

The striking voltage is 180 V and the burning current is from 6 to 75 mA. Within the current range the regulation is 5 volts.

The balloon envelope is 47 mm in diameter and, excluding the B4 base pins, is 105 mm tall.

References: Data-sheet & ¹⁰⁴⁰.

Pin Connections

B4	1	2	3	4
	a	k	nc	nc

Absolute Maximum Operating Conditions^¶

Stabiliser	Va	mAa
	120	75

Thanks to Frank Philipse for supplying the above PDF datasheet.
