CV63

Sensibly equivalent^¶ to:

CV344 E1323

See also:

CV344short entry

Extras ▼

Unknown HMS Collingwood Museum

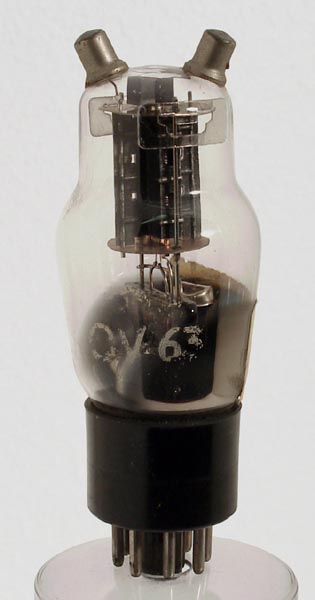

The CV63 is distinct because of the twin top caps. One cap is for the anode and the other is for the grid. The prototype for the CV63 was the M-OV experimental Type E1323.

It functions as a power oscillator and the ratings give peak values. It is specified to oscillate at 250 MHz - a very high figure for the time. Operation was in pulse mode.

The classic envelope is 37 mm in diameter and, excluding the IO base pins, is 90 mm tall.

References: Data-sheet.

Pin Connections

IO	1	2	3	4	5	6	7	8	tc(1)	tc(2)
	nc	h	nc	nc	nc	nc	k	k	g1	a

Absolute Maximum Operating Conditions^¶

Triode	Vh	Ah	Va	Vg	mAa	gm
	6.3	0.8	2,500	-	500	6.7

Thanks to Frank Philipse for supplying the above PDF datasheet.
