KT33C

Sensibly equivalent to:
CV1503 VR503
See also:
Osram KT2, KT76, KT33C, KT66, KT61, KT66, PX4 & PX25 Advert

Extras ▼



The KT33C audio power output valve was introduced by M-OV in 1939 and replaced the KT33. This version had a heater centre tap and was designed for series heater chains.
For the 5 Watts output the anode load would be 3,000 Ohms. The distortion at full power is 7.5%.

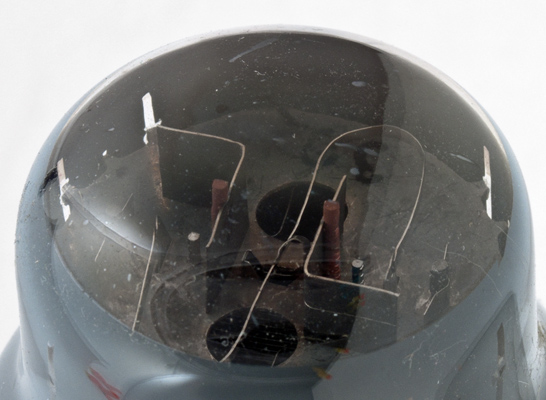

The top mica shows heat radiating fins connected to the control grid. The wire running across the top of the cathode is connected to both the cathode and both beam plates.

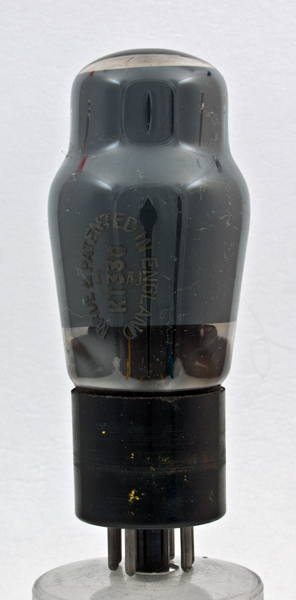

The classic envelope is 42 mm in diameter and, excluding the IO base pins, is 100 mm tall.
References: Data-sheet & 1043. Type KT33C was first introduced in 1939. See also 1939 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
hct
h
a
g2
g1
nc
h
k



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
26
0.3
200
200
-13.2
60
10
10.0
5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 06, 2022.
