6977

Sensibly equivalent to:
CV5412 DM160
See also:
Amperex 6977 Box

Extras ▼

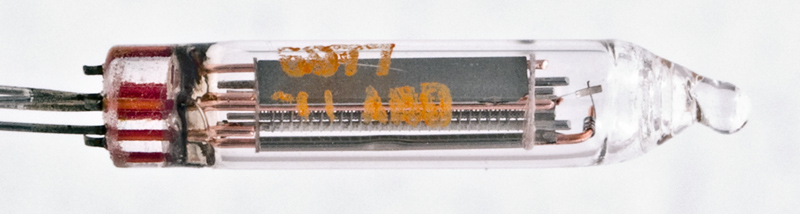

The 6977 is a sub-miniature indicator designed for computer applications.
The anode is a wire wound grid coated with a phosphor that gives a bright blue-green glow. The intensity of the display is proportional to the anode current.
The phosphor coated wound anode.
The thin glass tube envelope is 5 mm in diameter, and excluding the base wires is 27 mm tall.
References: Data-sheet & 3002. Type 6977 was first introduced in 1957. See also 1957 adverts.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
1.0
0.03
65
-0
0.75
Thanks to Frank Philipse for supplying the above PDF datasheet.
