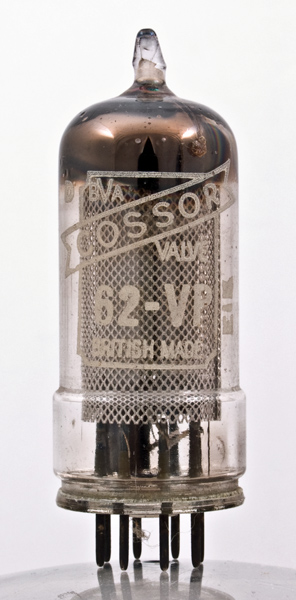

The 62-VP is a variable μ RF pentode for use as an RF or IF amplifier.

In the literature it states that although pins 3, 4 and 7 are internally connected together, it is recommended that the external cathode connection be made to pin 7 as this point offers the lowest connection inductance.

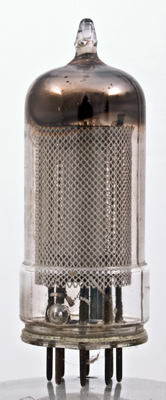

The all covering screen.

The locating pip moulded into the glass is required as the eight pins are equi-spaced around the pin circle on the base.

The thin glass tube envelope is 20 mm in diameter and, excluding the B8A base pins, is 53 mm tall.


Pin Connections

B8A	1	2	3	4	5	6	7	8
	h	a	ic	ic	g2	g1	k,g3	h


Absolute Maximum Operating Conditions

Pentode	Vh	Ah	Va	mAa	mAs	gm
	6.3	0.2	250	6.0	1.7	2.2

Thanks to Frank Philipse for supplying the above datasheet
