ECL80

Sensibly equivalent to:
63TP 6AB8 LN152
See also:
Valves and their Habits - A Single Valve Gram Unit

Extras ▼



The ECL80 is a triode, output pentode primarily designed for use in television receivers (VHF 405 line models) with the triode as a frame blocking oscillator and the pentode as a frame output valve. Other applications include the use of the triode as a line blocking oscillator, AF voltage amplifier or in multi-vibrator circuits and the operation of the pentode as an audio output valve or a synchronising pulse separator.

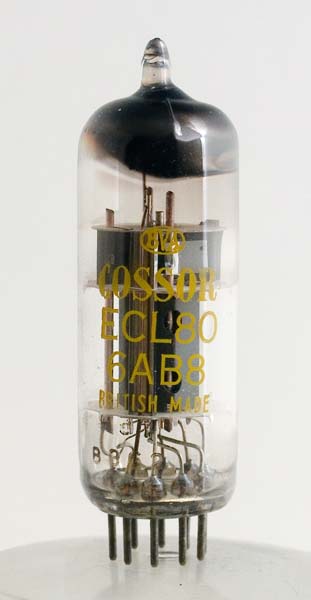

The lower electrode structure is the pentode, the triode is the small structure at the top of the valve. Also visible are the two small grid cooling fins. The heater at 6.3 Volts and 300 mA makes this valve suitable for equipment with mains transformers and heater chains across the domestic mains.
The Cossor ratings for this valve are somewhat different to the Mullard ECL80.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 59 mm tall.
References: Data-sheet, Data & 1040. Type ECL80 was first introduced in 1950. See also 1950 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1(t)
k,s
h
h
a
g3
g2
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
170
170
-6.7
15.0
2.8
150k
3.2



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
100
-2.3
4.0
12,500k
1.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
