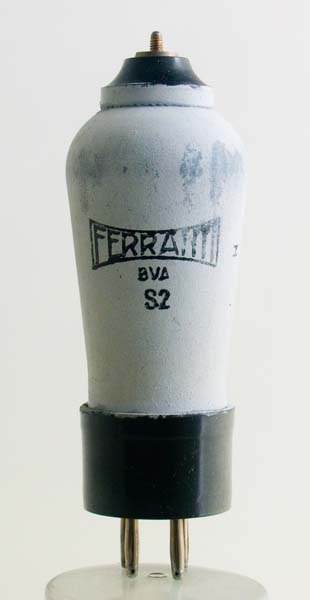

The Ferranti S2 is a screen grid RF tetrode. It was designated for use as a frequency changer in battery radio receivers where it would be heated by a two Volt accumulator.
The classic envelope is 42 mm in diameter and, excluding the B4 base pins, is 106 mm tall.
References: 1040 & 1043. Type S2 was first introduced in 1932. See also 1932 adverts.



Pin Connections
B4
1
2
3
4
tc
g2
g1
f
f
a



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
2.0
0.15
120
60
-1
2.25
0.3
0.3M
1.1
