LG210



Extras ▼



The LG210 is a dull emitter triode for use as a detector of AF amplifier.

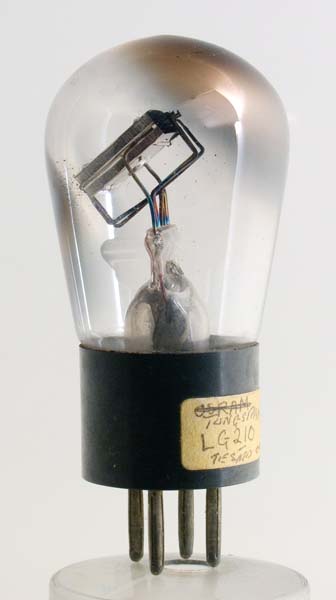

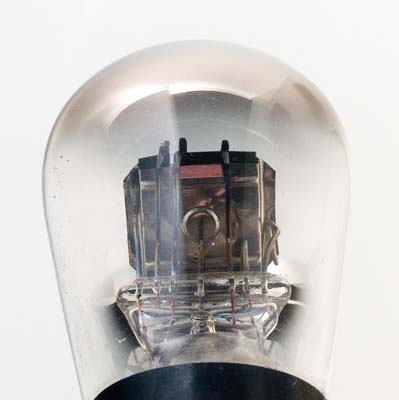

It is difficult to see the electrodes but the 'V' filament is surrounded by a bright wire grid and the anode is mounted at 45 °.
The balloon envelope is 47 mm in diameter and, excluding the B4 base pins, is 83 mm tall.
References: Data-sheet & 1043. Type LG210 was first introduced in 1930. See also 1930 adverts.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
2.0
0.1
150
-8
6.0
10,000
1.0
PDF scanned from an original document held by the museum
