VU134

Sensibly equivalent to:
CV1134 HVR2 NU34
See also:
Pioneers of HT Rectifiers - CV1134 short entry

Extras ▼

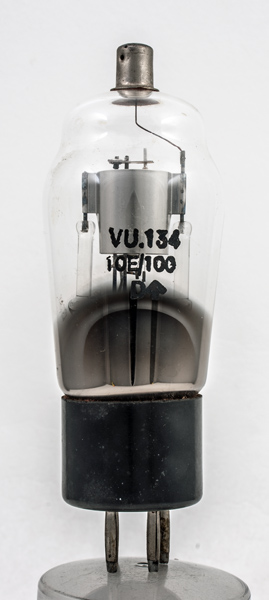

The VU134 is a half wave EHT rectifier. It would have been designed for provision of EHT in such applications as Cathode Ray Tube indicating instruments. Radar and Oscilloscopes primarily.

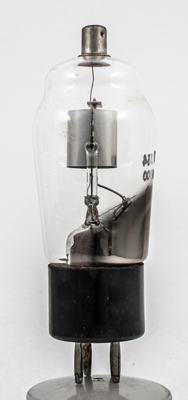

The cylindrical anode is mounted on glass rods and connects to the top cap.
The cathode has dual supports fixed to the pinch as all the support has to come from the rods within the anode.

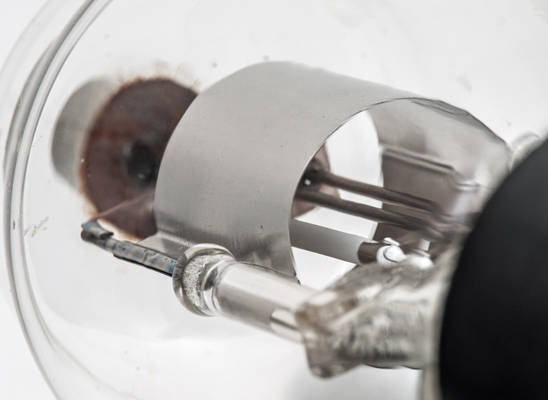

The white tube is the oxide coated cathode. The separation of the cathode from the anode indicates its high voltage design.

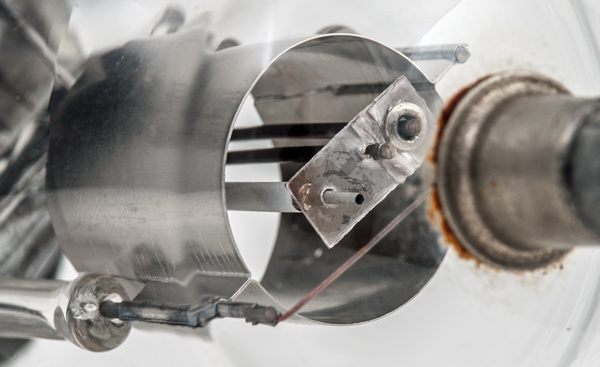

The top mica holding the cathode tube is held firmly by the two support rods.
The classic envelope is 43 mm in diameter, and excluding the B4 base pins, is 109 mm tall.
References: Datasheet, 1040 & 1043. Type VU134 was first introduced in 1937.



Pin Connections
B4
1
2
3
4
tc
-
-
h,k
h
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
4.0
0.65
6000
3.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December05, 2017.
shape:classic construction:pinch type:rectifier.hw age:1930.1940 base:b4 heater:4.0v pins:4 pin:1.- pin:2.- pin:3.h.k pin:4.h pin:tc.a
