CV309

Sensibly equivalent to:
CV483 CV1510 QV04-7

Extras ▼



The CV309 is the CV1510 with plated pins. The commercial version of these valves is the QV04-7 single beam tetrode.

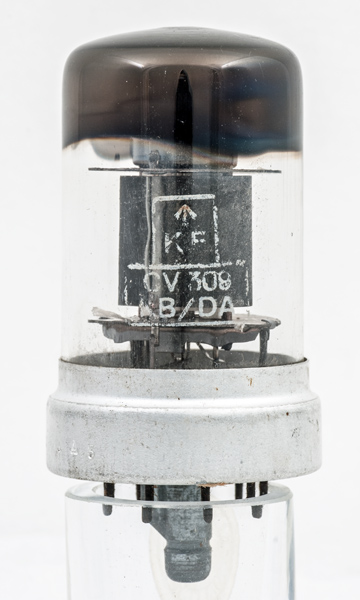

This design uses an early all glass envelope and base. The output is modest and the dissipation high in relation to the output. The efficiency as a Class C RF amplifier was 45% which is low for a Class C stage and this probably reflects the difficulty of working at 150 MHz at the time.

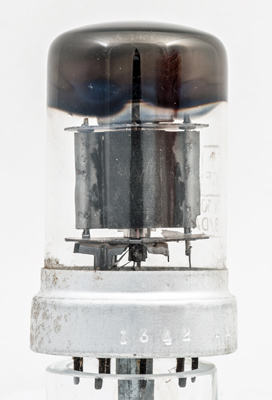

The side flanges of the anode connect to the supports and are placed in the centre of the working face facing the cathode.

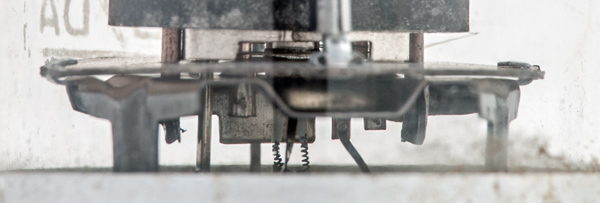

The components above the base. The heater wire is coiled before being coated in ceramic insulation.
The wide glass tube envelope is 32 mm in diameter, and excluding the B9G base pins is 58 mm tall.
References: Data-sheet & 1040. Type CV309 was first introduced in 1947. See also 1947 adverts.



Pin Connections
B9G
1
2
3
4
5
6
7
8
9
h
a
g2
g2
bp,s
k
g1
bp,s
h



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
mAg
Pout
Pdiss
freq
f.max
6.3
0.6
300
250
-50
44
6
0.4
7.7
7.5
60M
150
Thanks to Frank Philipse for supplying the above PDF datasheet.
