SP13


See also:
Mullard 'Straight' Screened Pentodes - Mullard Universal Valves

Extras ▼

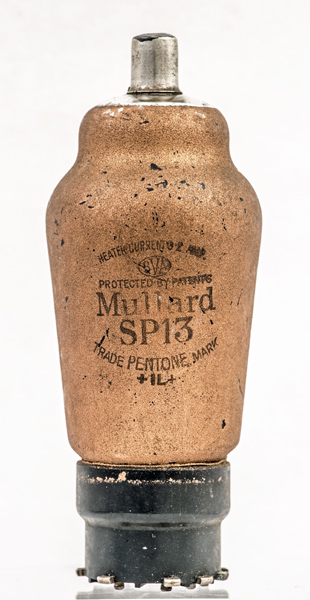

The SP13 screened amplifier pentode was introduced in 1934. This version has the Ct8 base and the similar SP13C has a B7 base. The use would have been for HF amplification in radio receivers. It is a non variable-mu valve and was displaced in favour of the variable μ pentode when TRF receivers gave way to mass produced superhet receivers.

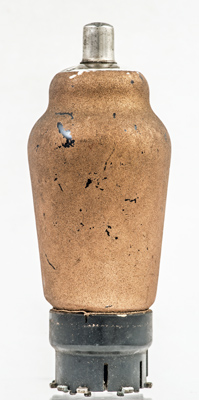

The classic envelope is 40 mm in diameter, and excluding the Ct8 base pins, is 104 mm tall.
References: Data-sheet, 1040 & 1043. Type SP13 was first introduced in 1934. See also 1934 adverts.



Pin Connections
Ct8
1
2
3
4
5
6
7
8
tc
m
h
h
k
g3
nc
g2
a
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
ra
gm
13.0
0.2
200
100
-
3
1.3M
2.2
PDF scanned from an original document held by the museum
