EF5



Extras ▼



The EF5 is a variable μ amplifier pentode.
The variable μ amplifier pentode would be used in the AGC controlled stages of superhet receivers, IF and for HF receivers also RF amplifiers.

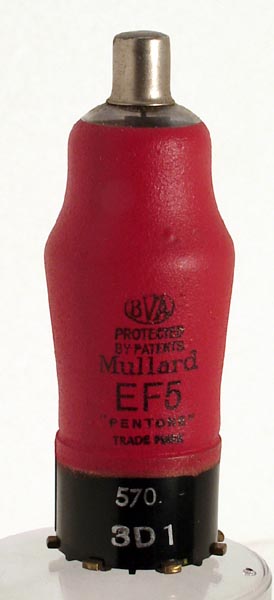

Our exhibit is unused, and has the distinctive red painted Mullard external metallisation screening. We also have a version of the EF5 with gold metallisation and an IO base.
The classic envelope is 30 mm in diameter and, excluding the Ct8 base pins, is 82 mm tall.
References: Data-sheet & 1043. Type EF5 was first introduced in 1938. See also 1938 adverts.



Pin Connections
Ct8
1
2
3
4
5
6
7
8
tc
m
h
h
k
g3
nc
g2
a
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.2
250
100
-3.0
8
2.5
1.2M
1.7
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 02, 2022.
