The 6BH6 is a high impedance, medium gain signal amplifier. The impedance suggests a use with tuned circuits so as to minimise the dampening effect of the valve. Such a device can be used with effect in frequency multiplying stages of transmitters or in high frequency receivers where a low frequency the local oscillator is multiplied before being applied to the mixer.

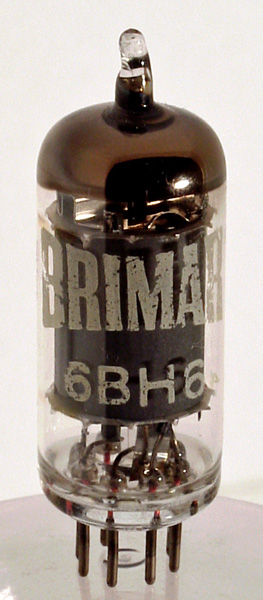

The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 46 mm tall.


Pin Connections

B7G	1	2	3	4	5	6	7
	g1	k	h	h	a	g2	g3


Absolute Maximum Operating Conditions

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	6.3	0.15	250	150	-1	7.4	2.9	1.4M	4.6

Thanks to Frank Philipse for supplying the above PDF datasheet
