VT501

Sensibly equivalent to:
CV1501 E1192 TT11

Extras ▼



The VT501 is a small low power VHF transmitting beam tetrode used in WWII, it is also known as the CV1501.

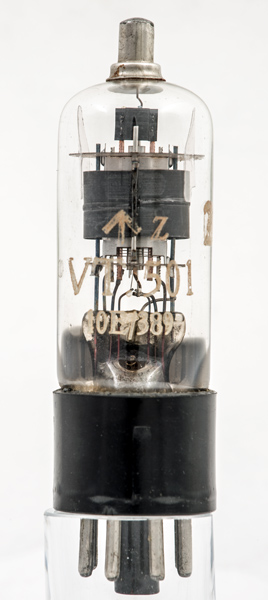

Our exhibit is from a post-war TRF (tuned radio frequency) broadcast radio receiver. These receivers were made in large quantities from kits in the late 1940s. In this simple receiver the VT501 was used as the audio output valve. This example predates the current tendency to use transmitting valves for audio use by 50 years.
The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 85 mm tall.
References: Data-sheet & 3002.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
nc
h
g3
g1
g2
nc
h
k
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
Pdriv
Pdiss
Pout
freq
f.max
6.3
0.8
250
160
-50
30
8
0.12
2.7W
4.8W
100MHz
200MHz
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 04, 2022.
