Wireless World PA AmplifierW T Cocking, Wireless World, April 3 & 10, 1936.
|
|
|
|

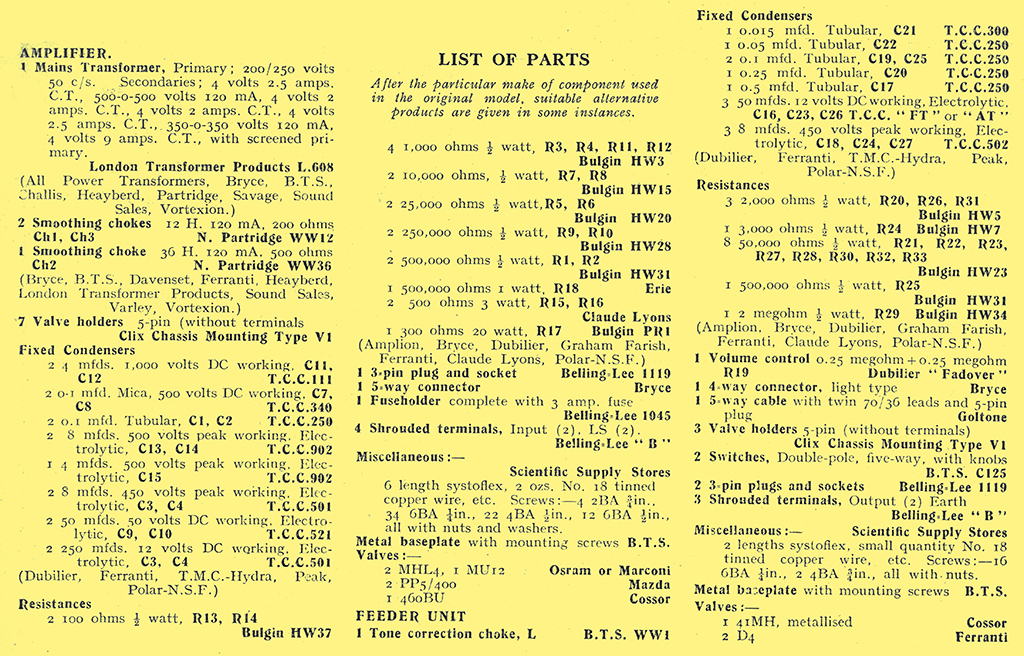

Diagrams.

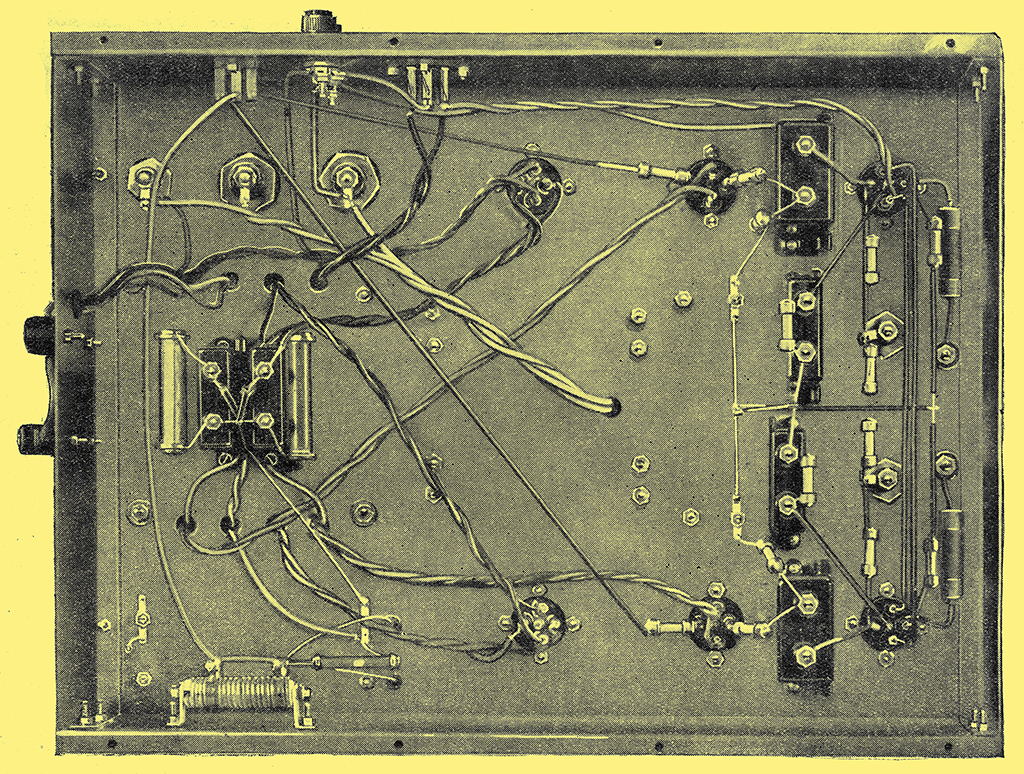

Underneath the amplifier chassis, where all, the small components are housed.

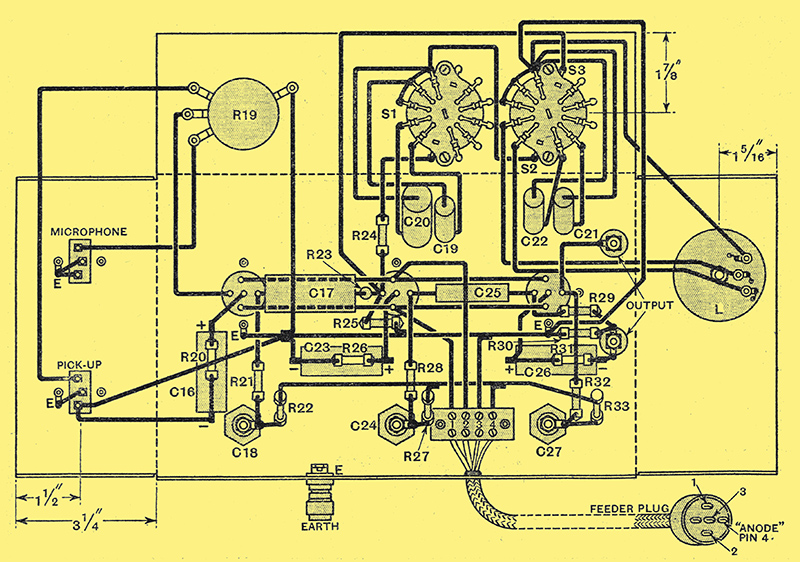

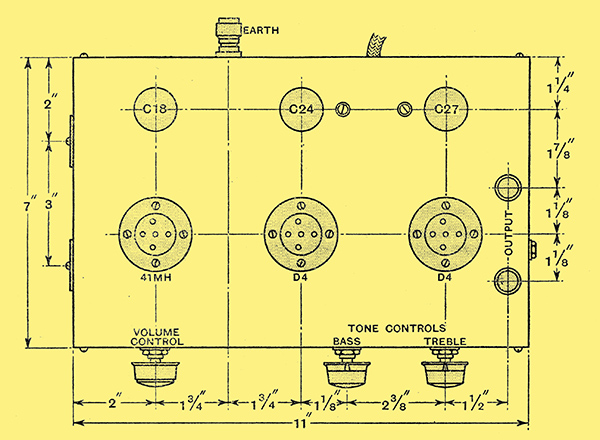

Full details are given in these drawings of the construction and wiring of the feeder-unit.

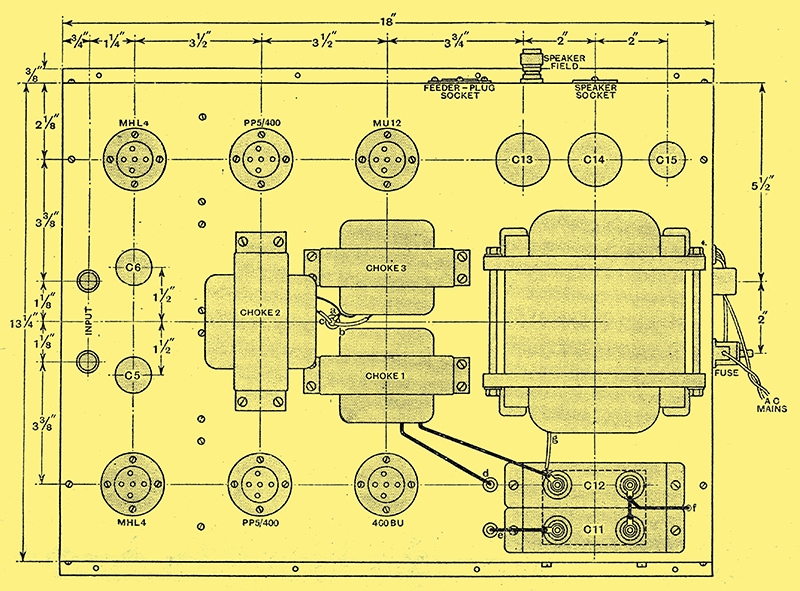

Layout of components for main amplifier.

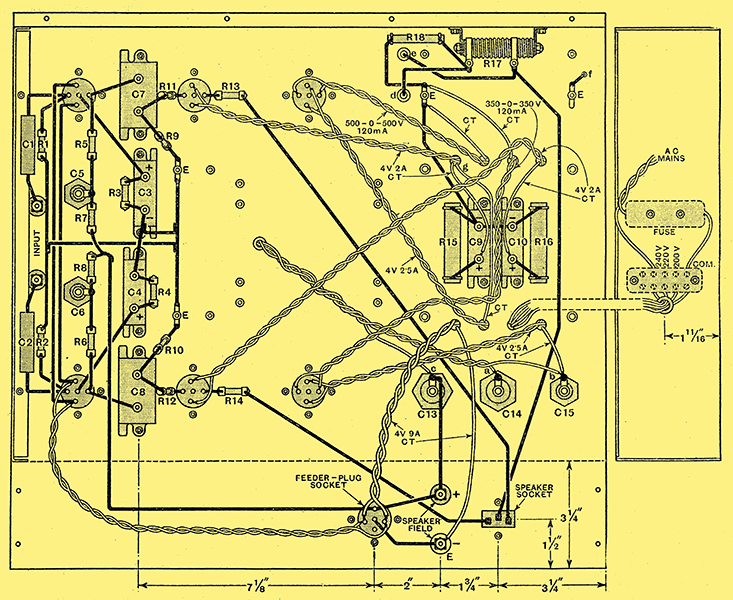

Wiring diagram for main amplifier.
