CV587

Sensibly equivalent to:
6Q7G DH63 NR68
See also:
The 'Magic Three' Valves

Extras ▼

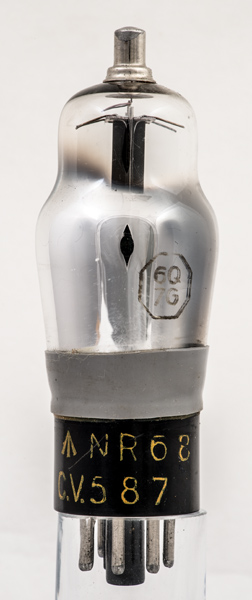

The CV587/NR68 (commercially the 6Q7G) is a double diode triode and was designed for receiver audio use.
The diodes would be for signal and AGC rectification and the triode would act as AGC amplifier or first audio amplifier.
This is an American made valve marked with the requirements of the UK Government procurement.

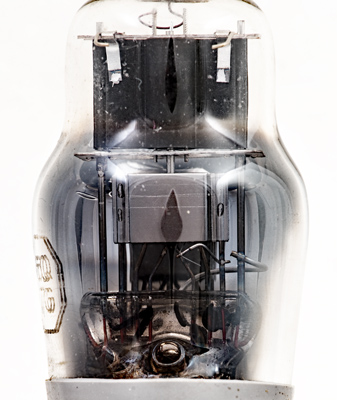

The construction follows the usual pattern of a screening box connected to the cathode housing the two rods that form the diode anodes. Above the central mica is the triode with the control grid taken to the top cap.
The classic envelope is 37 mm in diameter and, excluding the IO base pins, is 97 mm tall.
References: Data-sheet, 1040 & 1043. Type CV587 was first introduced in 1936. See also 1936 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
a(d2)
a(d1)
nc
h
k
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-3
1
58k
1.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
