ZD25Sensibly equivalent¶ to:
|
|
|
The ZD25(DAF96) is a miniature dry battery valve designed for detector and first audio stage use in the last generation of valve portable sets. As a professional brand the GEC valves may have been used in professional and/or military sets.

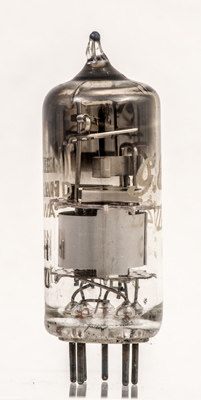

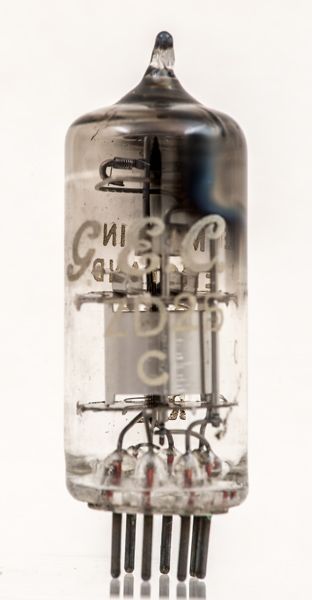

The single strand oxide coated filament passes vertically through the valve. At the top is the diode anode curling round the filament.The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 47 mm tall.References: Data-sheet, 3002 & 1040. Type ZD25 was first introduced in 1953. See also 1953 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |  f- | nc | a(d) | g2 | a | g1 | f+ |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | gm |
| 1.4 | 0.025 | 67.5 | 67.5 | -1.5 | 0.17 | 0.055 | 0.17 |
|
PDF scanned from an original document held by the museum |
Updated June 15, 2024.
|
|
