6J6W

Sensibly equivalent to:
CV2843

Extras ▼

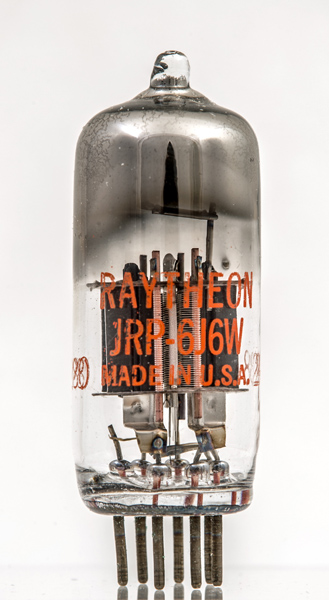

The 6J6W is a special quality 6J6 double triode. The design use was VHF signal amplification.

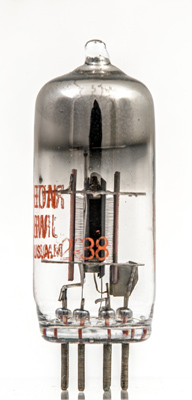

The open ended rectangular channel anode. The control grids extend outside the anode area.

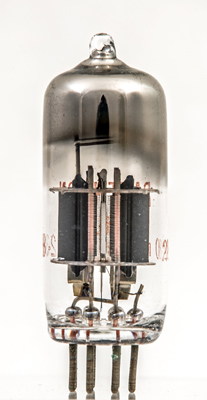

The central common cathode with two control grids shaped to pass flat across the cathode.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 44 mm tall.
Reference: Data-sheet. Type 6J6W was first introduced in 1957. See also 1957 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
a(2)
a(1)
h
h
g(1)
g(2)
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.45
100
-0.85
8.5
7100
5.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 26, 2023.
