PCL84

Sensibly equivalent to:
15DQ8
See also:
Valves and their Habits

Extras ▼



The PCL84 is a television valve with a general purpose triode and a video output pentode in the one envelope. No audio power rating has been found.

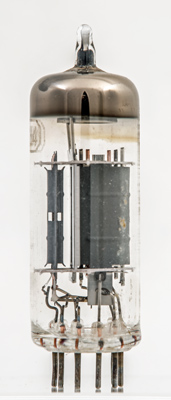

The triode is mounted at 90 degrees to the pentode section.

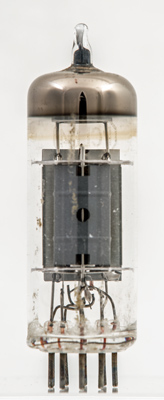

The pentode with electrostatic screen behind.

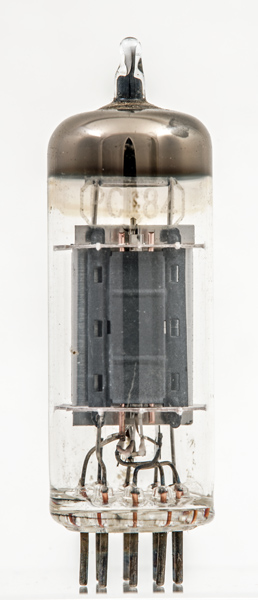

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 60 mm tall.
References: Data-sheet & 1040



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g1(t)
a(t)
k(t)
h
h
a
k,g3,s
g1
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pdiss
15
0.3
220
220
-3.3
18
3.2
0.15M
9.5
4.0W



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
200
-1.7
3
16.2k
4
Thanks to Frank Philipse for supplying the above PDF datasheet.
