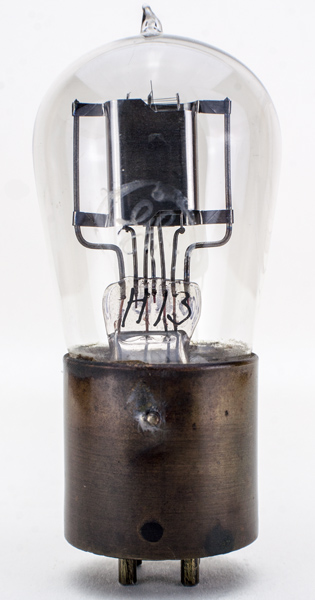

The Cunningham C-00 is an early design. It has the Shaw base cap and the electrode structure closely resembles the VT-14 also made by General Electric.The GE logo is etched into the glass and the clear bulb indicates a lack of gettering.Thanks to Joe Gruber for sending the images.The envelope is mm in diameter and, excluding the UV base pins, is mm tall.References: 1047 & Joe Gruber. |
Pin Connections
| 1 | 2 | 3 | 4 |  g1 | f | f | a |
|
|
Updated February 12, 2021.
|
|
