UV200

Sensibly equivalent to:
200 C-300

Extras ▼



The UV200 was a soft valve, it had a low pressure argon gas filling. At the time soft valves were considered to be more sensitive for the role of signal detection. The filament is pure tungsten and thus this was a bright emitter.
The design of the anode and mounting has evolved with a pressed sheet anode bonded to the side support rods.

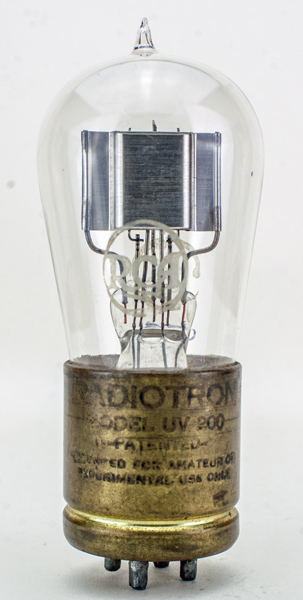

This exhibit has the RCA logo and the Radiotron brand.
The 'new' RCA logo with the GE logo on the reverse.
The original box. The RCA label is in place and the company name Radio Corporation of America is clearly present. At this time RCA is still selling General Electric valves.
Thanks to Joe Gruber for sending the images.
The envelope is  mm in diameter and, excluding the UV base pins, is  mm tall.
Reference: Joe Gruber. Type UV200 was first introduced in 1920. See also 1920 adverts.



Pin Connections
UV
1
2
3
4
g1
f
f
a



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
5.0
1.0
20-25
