VT-1

Sensibly equivalent to:
WE-203A

Extras ▼



This VT-1 was made for the US Navy where it was known as the 203B. The construction of this valve is slightly different to 203B and the pins lack the gold plating.

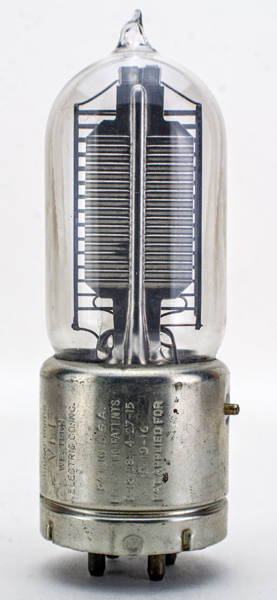

The anode plates are corrugated and the main support is shaped to provide rigidity. With this extra strength the fragile glass rod support was no longer required.

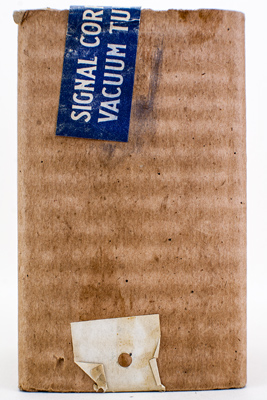

The original box with the US Signal Corps label.
Thanks to Joe Gruber for sending the images.
The wide glass tube envelope is 32 mm in diameter, and including the base pins is 105 mm tall.
References: Joe Gruber, 1047 & Internet.



Pin Connections
UV
1
2
3
4
g1
f
f
a



Absolute Maximum Operating Conditions
Triode
Vh
Ah
2.2
1.0
